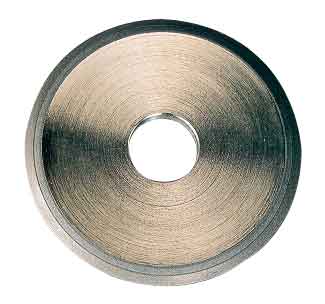

Diamond Dressing Disks are used on Profile Grinding wheel Dressers, such as Normac, or on CNC grinders with rotary dressing capability to profile dress the grinding wheel.
Rotary Diamond Dressing Disks are available in three types of construction: sintered, reverse plated and PCD (polycrystaline diamond) insert. These disks are most commonly used in CNC wheel dressing applications but can also be used to profile resin bonded diamond and CBN grinding wheels.
| Reform Dressing Wheel | ||
|---|---|---|
| WFM-2A-Type 1 | ||
| A | R | |
| Part No. | Angle | Radius |
| WFM-2A-206 | 60° | .020 |
| WFM-2A-026 | 60° | .002 |
| WFM-2A-056 | 60° | .005 |
| WFM-2A-106 | 60° | .010 |
| WFM-2A-054 | 40° | .005 |
| WFM-2A-104 | 40° | .010 |
| WFM-2A-204 | 40° | .020 |
| WFM-2A-209 | 90° | .020 |
| WFM-2A-154 | 60° | .015 |
| Reform Dressing Wheel | ||
|---|---|---|
| WFM-2A-Type 2 | ||
| A | R | |
| Part No. | Angle | Radius |
| WFM-2A-634 | 40° | .0625 |
| WFM-2A-306 | 60° | .0300 |
| WFM-2A-626 | 60° | .0625 |
