Superior 2-Stone Hones and Mandrels

Convert your SUNNEN, AMMCO, EXCELLO or other machines into a two hone stone system!

You'll get the benefits and advantages of being able to use the 2-Stone Honing System...proven to be the fastest and most accurate honing method in the industry! And best of all, you'll reduce the honing costs by up to 65% compared to the SUNNEN system! Compare the differences in system components to cover the honing range from 3/16" to 3" diameter.

  SUNNEN 2-Stone Hone System
Mandrels Required
  • 96 soft mandrels
  • 96 hard mandrels
  • 29 mandrels
Other Items Wedges; Stones; Retainers; Adapter Wedge Guide; Truing Sleeves; Guide Shoes One adapter
Mandrel Life
  • Mandrel makes contact with the workpiece
  • 2-3 boxes of stones wear out a mandrel
  • Only stones make contact with workpieces
  • No mandrel wear for lifetime use



Converts Sunnen machine to Superior Type 2-stone honing system

T1000 Adapter is easy to install on any machine!

Superior Type 2-stone honing system on Sunnen machine

This adapter receives all standard Superior type mandrels 1/16" to 3". Simply remove the insert screw, change mandrels, and replace the screw. A Honing Shop Guide is included with each T1000 Adapter. It contains complete instructions to simplify your honing application.








MD-1 MANDREL DRIVER Converts Your Drill
Press Into A 2-Stone Vertical Honing Machine!

  • INSTANT SET UP--As quick as 1-2-3 without tools.
  • PERMANENT TYPE MANDREL FOR EXTRA-LONG LIFE--Only the stones contact materials to be honed.  Eliminates mandrel marking for cleaner honed surfaces.
  • CONCENTRIC MANDREL FOR SMOOTHER HONING ACTION--High-precision work produced with less operator fatigue.  No realignment of the mandrel as the abrasive wears.
  • WIDE MANDREL RANGE--From ".060" to 3.000".  Over 3,000" subject to quote.
  • WIDE STONE AREA FOR FASTER HONING ACTION--Longer stone life, larger stone area.  Efficient problem-free honing of surfaces with keyways, splines or cross bores.  Simultaneous, precision honing of small pieces with short holes such as spacers or washers.
  • HIGH QUALITY 2-STONE bore honing replaces other stock removal operations.
  • LOCK-IN FEATURE--Stones are locked in mandrel with a lip mechanism on stone holders over 3/16".
  • RIGID STONES FOR ACCURACY--There is maximum rigidity of expandable stones because the stone shoe rests directly against the taper of the mandrel and is completely supported along its full length and width.  The size control dial adjusts expansion.  Out-of-round holes are quickly honed true and tolerances held.  There is no tendency to bend, cam, sag or yield.
  • ENGINEERING CONSULTATION SERVICE--Our skilled engineers are at your service to help you with any honing problem you may have.

Superior Type 2-stone honing system

Superior Type 2-stone honing system in action on drill press

MD-1 MANDREL DRIVER

When accurate sizing and precision finishing is a must, the 2-STONE MD-1 MANDREL DRIVER is the answer!

  • Keyways and slots hone faster and hold .001 accuracy, ideal for die work, bushings, dowel pin holes.  Converts any drill press to a vertical honing machine in seconds!  No tools are necessary..snaps in with a twist of the wrist!
  • >
  • Mandrels sizes .177 to 3.000 Standard in stock.  Furnished in No. 2, 3 or 4 Morse Tapers, straight or special shank.
  • Mandrel sizes .060 to .177 recommended only for Horizontal Honing machines and on "VH" Honing heads.

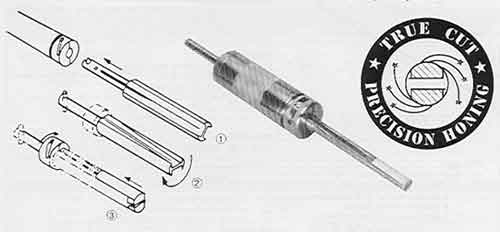

  • MD-1 Mandrel Driver snaps in with twist of the wrist!






Diagram of Superior Type 2-stone honing system

"A" - "A1" - "A2' SERIES - MANDRELS & STONES
FOR .060" TO 3" HOLES

MANDRELS (Single Stone Design) STONE (Single Stone) TRUING SLEEVE
SIZE RANGE NUMBER LENGTH "G" COARSE MEDIUM FINE LENGTH "F"
.060" .060-.064 A-058 1-1/4" A-058--220-S A-058--320-R A-058--500-O 1/2" NOT RECOMMENDED
BUT AVAILABLE
.065" .065-.073 A-063 1-1/4" A-063--220-S A-063--320-R A-063--500-O 1/2"
.074" .074-.082 A-072 1-1/4" A-072--220-S A-72---320-R A-072--500-O 1/2"
.083" .083-.091 A-081 1-1/4" A-081--220-S A-081--320-R A-081--500-O 1/2"

MANDRELS

STONE SET

TRUING SLEEVE
SIZE RANGE NUMBER LENGTH "G" COARSE MEDIUM FINE LENGTH "F" SIZE
3/32" .092-.106 A1-090 1-7/16"

A1-220-S

A1-320-R A1-500-O

1/2"

AT-090
7/64" .107-.121 A1-105 1-7/16" AT-105
1/8" .122-.136 A2-120 1-7/8" A2-220-S A2-320-R A2-500-O 1/2" AT-120
9/64" .137-.151 A2-135 1-7/8" AT-135
5/32" .152-.166 A2-150 1-7/8" AT-150
11/64" .167-.177 A2-165 1-7/8" AT-165

MANDRELS

STONE SET

TRUING SLEEVE
SIZE RANGE NUMBER LENGTH "G" COARSE MEDIUM FINE LENGTH "F" SIZE
3/16" .177-.209 A-3-3 4" A-3-3-220 A-3-3-320 A-3-3-500 1" AT3-3
7/32" .209-.240 A-3-4 4" A-3-4-220 A-3-4-320 A-3-4-500 1" AT3-4
1/4" .240-.302 A-4-3 3-1/4" A-4-3-220 A-4-3-320 A-4-3-500 3/4" T4-3
5/16" .302-.365 A-5-5 4" A-5-5-220 A-5-5-320 A-5-5-500 1-1/8" T5-5
3/8" .365-.427 A-6-7 5" A-6-7-220 A-6-7-320 A-6-7-500 1-1/2" T6-7
7/16" .427-.490 A-7-7 5" A-7-7-220 A-7-7-320 A-7-7-500 1-1/2" T7-7
1/2" .490-.552 A-8-9 5-3/4" A-8-9-220 A-8-9-320 A-8-9-500 1-15/16" T8-9
9/16" .552-.615 A-9-9 5-3/4" A-9-9-220 A-9-9-320 A-9-9-500 1-15/16" T9-9
5/8" .615-.677 A-10-10 6" A-10-10-220 A-10-10-320 A-10-10-500 2-1/2" T10-10
11/16" .677-.740 A-11-10 6" A-11-10-220 A-11-10-320 A-11-10-500 2-1/2" T11-10
3/4" .740-.865 A-12-12 6-5/8" A-12-12-220 A-12-12-320 A-12-12-500 3" T12-12
7/8" .865-.990 A-14-14 7-1/8" A-14-14-220 A-14-14-320 A-14-14-500 3-1/2" T14-14
1" .990-1.115 A16-16 7-5/8" A16-16-220 A16-16-320 A16-16-500 3-1/2" T16-16
1-1/8" 1.115-1.240 A18-16 7-5/8" A18-16-220 A18-16-320 A18-16-500 4 T18-16
1-1/4" 1.240-1.365 A-20-16 7-5/8" A-20-16-220 A-20-16-320 A-20-16-500 4 T20-16
1-3/8" 1.365-1.490 A-22-16 7-5/8" A-22-16-220 A-22-16-320 A-22-16-500 4 T22-16
1-1/2" 1.490-1.615 A-24-16 7-5/8" A-24-16-220 A-24-16-320 A-24-16-500 4 T24-16
1-5/8" 1.615-1.740 A-26-16 7-5/8" A-26-16-220 A-26-16-320 A-26-16-500 4 T26-16
1-3/4" 1.740-1.865 A-28-16 7-5/8" A-28-16-220 A-28-16-320 A-28-16-500 4 T28-16
1-7/8" 1.865-1.990 A-30-16 7-5/8" A-30-16-220 A-30-16-320 A-30-16-500 4 T30-16
2 1.990-2.115 A-32-16 7-5/8" A-32-16-220 A-32-16-320 A-32-16-500 4 T32-16
2-1/8" 2.115-2.240 A-34-16 7-5/8" A-34-16-220 A-34-16-320 A-34-16-500 4 T34-16
2-1/4" 2.240-2.365 A-36-16 7-5/8" A-36-16-220 A-36-16-320 A-36-16-500 4 T36-16
2-3/8" 2.365-2.490 A-38-16 7-5/8" A-38-16-220 A-38-16-320 A-38-16-500 4 T38-16
2-1/2" 2.490-2.615 A-40-16 7-5/8" A-40-16-220 A-40-16-320 A-40-16-500 4 T40-16
2-5/8" 2.165-2.740 A-42-16 7-5/8" A-42-16-220 A-42-16-320 A-42-16-500 4 T42-16
2-3/4" 2.740-2.865 A-44-16 7-5/8" A-44-16-220 A-44-16-320 A-44-16-500 4 T44-16
2-7/8" 2.865-2.990 A-46-16 7-5/8" A-46-16-220 A-46-16-320 A-46-16-500 4 T46-16
3 2.990-3.115 A-48-16 7-5/8" A-48-16-220 A-48-16-320 A-48-16-500 4 T48-16

"B' - "B2" SERIES - MANDRELS & STONES
FOR LONG HOLES -.120" TO 3'


MANDRELS

STONE SET

TRUING SLEEVE
SIZE RANGE NUMBER LENGTH "G" COARSE MEDIUM FINE LENGTH "F" SIZE
1/8" .122-.136 B2-120 2-5/8" B2-220-S B2-320-R B2-500-O 1" BT-120
9/64" .137-.151 B2-135 2-5/8" BT-135
5/32" .152-.166 B2-150 2-5/8" BT-150
11/64" .167-.177 B2-165 2-5/8" BT-165

MANDRELS

STONE SET

TRUING SLEEVE
SIZE RANGE NUMBER LENGTH "G" COARSE MEDIUM FINE LENGTH "F" SIZE
3/16" .177-.209 B-3-3 5" B-3-3-220 B-3-3-320 B-3-3-500 1-1/2" BT-3-3
7/32" .209-.240 B-3-4 5" B-3-4-220 B-3-4-320 B-3-4-500 1-1/2" BT-3-4
1/4" .240-.302 B-4-6 4-1/4" B-4-6-220 B-4-6-320 B-4-6-500 1-1/2" T4-6
5/16" .302-.365 B-5-8 4-3/4" B-5-8-220 B-5-8-320 B-5-8-500 2" T5-8
3/8" .365-.427 B-6-10 6-1/4" B-6-10-220 B-6-10-320 B-6-10-500 2-1/2" T6-10
7/16" .427-.490 B-7-10 6-1/4" B-7-10-220 B-7-10-320 B-7-10-500 2-1/2" T7-10
1/2" .490-.552 B-8-11 7" B-8-11-220 B-8-11-320 B-8-11-500 2-3/4" T8-11
9/16" .552-.615 B-9-14 7" B-9-14-220 B-9-14-320 B-9-14-500 3-1/2" T9-14
5/8" .615-.677 B-10-16 7-5/8" B-10-16-220 B-10-16-320 B-10-16-500 4" T10-16
11/16" .677-.740 B-11-16 7-5/8" B-11-16-220 B-11-16-320 B-11-16-500 4" T11-16
3/4" .740-.865 B-12-24 9-5/8" B-12-24-220 B-12-24-320 B-12-24-500 5-1/2" T12-24
7/8" .865-.990 B-14-24 9-5/8" B-14-24-220 B-14-24-320 B-14-24-500 6" T14-24
1" .990-1.115 B-16-24 9-5/8" B-16-24-220 B-16-24-320 B-16-24-500 6" T16-24
1-1/8" 1.115-1.240 B-18-24 9-5/8" B-18-24-220 B-18-24-320 B-18-24-500 6" T18-24
1-1/4" 1.240-1.365 B-20-24 9-5/8" B-20-24-220 B-20-24-320 B-20-24-500 6" T20-24
1-3/8" 1.365-1.490 B-22-24 9-5/8" B-22-24-220 B-22-24-320 B-22-24-500 6" T22-24
1-1/2" 1.490-1.615 B-24-24 9-5/8" B-24-24-220 B-24-24-320 B-24-24-500 6" T24-24
1-5/8" 1.615-1.740 B-26-24 9-5/8" B-26-24-220 B-26-24-320 B-26-24-500 6" T26-24
1-3/4" 1.740-1.865 B-28-24 9-5/8" B-28-24-220 B-28-24-320 B-28-24-500 6" T28-24
1-7/8" 1.865-1.990 B-30-24 9-5/8" B-30-24-200 B-30-24-320 B-30-24-500 6" T30-24
2" 1.990-2.115 B-32-24 9-5/8" B-32-24-220 B-32-24-320 B-32-24-500 6" T32-24
2-1/8" 2.115-2.240 B-34-24 9-5/8" B-34-24-220 B-34-24-320 B-34-24-500 6" T34-24
2-1/4" 2.240-2.365 B-36-24 9-5/8" B-36-24-220 B-36-24-320 B-36-24-500 6" T36-24
2-3/8" 2.365-2.490 B-38-24 9-5/8" B-38-24-220 B-38-24-320 B-38-24-500 6" T38-24
2-1/2" 2.490-2.615 B-40-24 9-5/8" B-40-24-220 B-40-24-320 B-40-24-500 6" T40-24
2-5/8" 2.615-2.740 B-42-24 9-5/8" B-42-24-220 B-42-24-320 B-42-24-500 6" T42-24
2-3/4" 2.740-2.865 B-44-24 9-5/8" B-44-24-220 B-44-24-320 B-44-24-500 6" T44-24
2-7/8" 2.865-2.990 B-46-24 9-5/8" B-46-24-220 B-46-24-320 B-46-24-500 6" T46-24
3" 2.990-3.115 B-48-24 9-5/8" B-48-24-220 B-48-24-320 B-48-24-500 6" T48-24

"C"  SERIES - MANDRELS & STONES
FOR EXTRA LONG HOLES - 3/4 TO 3"


MANDRELS

STONE SET

TRUING SLEEVE
SIZE RANGE NUMBER LENGTH "G" COARSE MEDIUM FINE LENGTH "F" SIZE
3/4" .740-.865 C-12-24 12" C-12-24-220 C-12-24-320 C-12-24-500 6" T12-24
7/8" .865-.990 C-14-24 12" C-14-24-220 C-14-24-320 C-14-24-500 6" T14-24
1" .990-1.115 C-16-24 12" C-16-24-220 C-16-24-320 C-16-24-500 6" T16-24
1-1/8" 1.115-1.240 C-18-24 12" C-18-24-220 C-18-24-320 C-18-24-500 6" T18-24
1-1/4" 1.240-1.365 C-20-24 12" C-20-24-220 C-20-24-320 C-20-24-500 6" T20-24
1-3/8" 1.365-1.490 C-22-24 12" C-22-24-220 C-22-24-320 C-22-24-500 6" T22-24
1-1/2" 1.490-1.615 C-24-24 12" C-24-24-220 C-24-24-320 C-24-24-500 6" T24-24
1-5/8" 1.615-1.740 C-26-24 12" C-26-24-220 C-26-24-320 C-26-24-500 6" T26-24
1-3/4" 1.740-1.865 C-28-24 12" C-28-24-220 C-28-24-320 C-28-24-500 6" T28-24
1-7/8" 1.865-1.990 C-30-24 12" C-30-24-200 C-30-24-320 C-30-24-500 6" T30-24
2" 1.990-2.115 C-32-24 12" C-32-24-220 C-32-24-320 C-32-24-500 6" T32-24
2-1/8" 2.115-2.240 C-34-24 12" C-34-24-220 C-34-24-320 C-34-24-500 6" T34-24
2-1/4" 2.240-2.365 C-36-24 12" C-36-24-220 C-36-24-320 C-36-24-500 6" T36-24
2-3/8" 2.365-2.490 C-38-24 12" C-38-24-220 C-38-24-320 C-38-24-500 6" T38-24
2-1/2" 2.490-2.615 C-40-24 12" C-40-24-220 C-40-24-320 C-40-24-500 6" T40-24
2-5/8" 2.615-2.740 C-42-24 12" C-42-24-220 C-42-24-320 C-42-24-500 6" T42-24
2-3/4" 2.740-2.865 C-44-24 12" C-44-24-220 C-44-24-320 C-44-24-500 6" T44-24
2-7/8" 2.865-2.990 C-46-24 12" C-46-24-220 C-46-24-320 C-46-24-500 6" T46-24
3" 2.990-3.115 C-48-24 12" C-48-24-220 C-48-24-320 C-48-24-500 6" T48-24

"DM"  SERIES - MANDRELS & STONES
FOR SHORT HOLES - 3/4 TO 3"


MANDRELS

STONE SET

TRUING SLEEVE

SIZE RANGE NUMBER LENGTH "G" COARSE MEDIUM FINE LENGTH "F" NUMBER
3/4" .740-.865 DM-12-8 5-5/8" DM-12-8-220 DM-12-8-320 DM-12-8-500 1-15/16" T12-8
7/8" .865-.990 DM-14-8 6-1/8" DM-14-8-220 DM-14-8-320 DM-14-8-500 1-15/16" T14-8
1" .990-1.115 DM-16-8 6-1/8" DM-16-8-220 DM-16-8-320 DM-16-8-500 1-15/16" T16-8
1-1/8" 1.115-1.240 DM-18-8 6-1/8" DM-18-8-220 DM-18-8-320 DM-18-8-500 1-15/16" T18-8
1-1/4" 1.240-1.365 DM-20-8 6-1/8" DM-20-8-220 DM-20-8-320 DM-20-8-500 1-15/16" T20-8
1-3/8" 1.365-1.490 DM-22-8 6-1/8" DM-22-8-220 DM-22-8-320 DM-22-8-500 1-15/16" T22-8
1-1/2" 1.490-1.615 DM-24-8 6-1/8" DM-8-8-220 DM-24-8-320 DM-24-8-500 2" T24-8
1-5/8" 1.615-1.740 DM-26-8 6-1/8" DM-26-8-220 DM-26-8-320 DM-26-8-500 2" T26-8
1-3/4" 1.740-1.865 DM-28-8 6-1/8" DM-28-8-220 DM-28-8-320 DM-28-8-500 2" T28-8
1-7/8" 1.865-1.990 DM-30-8 6-1/8" DM-30-8-200 DM-30-8-320 DM-30-8-500 2" T30-8
2" 1.990-2.115 DM-32-8 6-1/8" DM-32-8-220 DM-32-8-320 DM-32-8-500 2" T32-8
2-1/8" 2.115-2.240 DM-34-8 6-1/8" DM-34-8-220 DM-34-8-320 DM-34-8-500 2" T34-8
2-1/4" 2.240-2.365 DM-36-8 6-1/8" DM-36-8-220 DM-36-8-320 DM-36-8-500 2" T36-8
2-3/8" 2.365-2.490 DM-38-8 6-1/8" DM-38-8-220 DM-38-8-320 DM-38-8-500 2" T38-8
2-1/2" 2.490-2.615 DM-40-8 6-1/8" DM-40-8-220 DM-40-8-320 DM-40-8-500 2" T40-8
2-5/8" 2.615-2.740 DM-42-8 6-1/8" DM-42-8-220 DM-42-8-320 DM-42-8-500 2" T42-8
2-3/4" 2.740-2.865 DM-44-8 6-1/8" DM-44-8-220 DM-44-8-320 DM-44-8-500 2" T44-8
2-7/8" 2.865-2.990 DM-46-8 6-1/8" DM-46-8-220 DM-46-8-320 DM-46-8-500 2" T46-8
3" 2.990-3.115 DM-48-8 6-1/8" DM-48-8-220 DM-48-8-320 DM-48-8-500 2" T48-8
